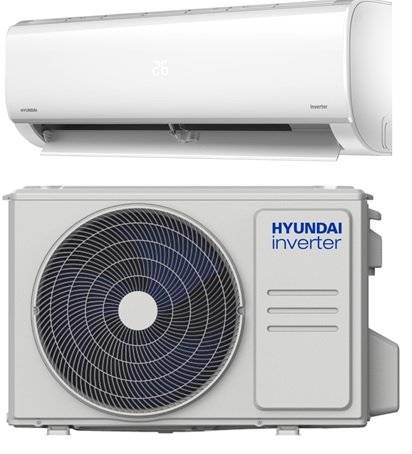

Specificatii Model HYU-09HRDN8-QRD0GW

·Alimentare electrica Ph-V-Hz 220V-240V,1Ph,50Hz

·Putere Racire Capacitate Btu/h "9000 (3100~11600)"

·Consum electric racire W 710(100~1240)

·Amperaj racire A 1(0.4~5.4)

·Putere Incalzire Capacitate Btu/h 10000(2800~11500)

·Consum electric incalzire W 739(120~1200)

·Amperaj incalzire A 2(0.5~5.2)

·Racire sezoniera Pdesignc kW 6

·SEER W/W 2

·Clasa eficienta energetica A++

·Incalzire sezoniera Pdesignh kW 1

·SCOP W/W 0

·Clasa eficienta energetica A+

·Temperatura de balans ℃ -7

·Temperatura limita pentru incalzire ℃ -15

·Putere max. consumata W 2150

·Amperaj maxim A 10

·Compresor Model KSK89D53UEZ

·Tip rotativ

·Brand GMCC

·Capacitate Btu/h 2780

·Putere consumata W 712

·Amperaj in functionare A 90

·Refrigerant oil/oil charge ml ESTEL OIL VG74/280ml

·Motor ventilator UI Model YKFG-13-4-38L-4

·Putere W 40

·Condensator electric uF 2

·Turatie(Hi/Mi/Lo) r/min 1030 / 850 / 750

·Schimbator UI Numar spirale 2.0

·Pas tub(a)x pas linie(b) mm 19.5x11.6

·Spatiere mm 1.2

·Diametru tub mm Φ5,tub canelat

·Lungime spira x inaltime x latime mm 595x273x23.2

·Numar de circuite 4

·Debit aer UI (Hi/Mi/Lo) m3/h 520/460/360

·Presiune sonora UI (Hi/Mi/Lo/Si) dB(A) 40/30/26/21

·Putere sonora UI (Hi) dB(A) 0

·UI Dimensiuni(W*D*H) mm 805x194x285

·Ambalaj (W*D*H) mm 870x270x360

·Masa Net/Gross Kg 5/9.7

·Motor ventilator UE Model ZKFN-34-8-1

·Putere W 66

·Turatie r/min 850/650/450

·Schimbator UI Numar spirale 1.0

·Pas tub(a)x pas linie(b) mm 21x22

·Spatiere mm 1.2

·Diametru tub mm Φ7,innergroove tube

·Lungime spira x inaltime x latime mm 680x504x22

·Numar de circuite 2

·Nivel presiune sonora UE dB(A) 5

·Putere sonora UE dB(A) 0

·UE Dimensiuni (W*D*H) mm 700x275x550

·Ambalaj (W*D*H) mm 815x325x615

·Masa Net/Gross Kg 7/25.2

·Refrigerent Tip R32

·GWP 675

·Masa incarcatura Kg 5

·Presiune de proiect MPa 3/1.7

·Tevi refrigerent Diam tevi refrigerent lichid/gaz mm/inch Φ6.35(1/4")/Φ9.52/(3/8")

·Lungime maxima traseu teava m 25

·Diferenta max. de nivel m 10

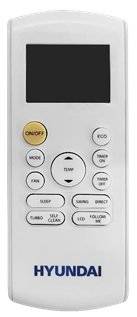

·Control temperatura Telecomanda

·Temperaturi de lucru Intern (racire/incalzire) ℃ 17～32/0～30

·Exterior (racire/incalzire) ℃ -15～50/-25～30

·Suprafata aplicatie minim maxim m2 12-18
