Specificatii Model HYU-24HRFN8-QRD0GW

·Alimentare electrica Ph-V-Hz 220-240V,1Ph,50Hz

·Putere Racire Capacitate Btu/h "24000 (7100~27120)"

·Consum electric racire W 2345(160~2960)

·Amperaj racire A 2(0.7~13.3)

·Putere Incalzire Capacitate Btu/h 25000(5500~30000)

·Consum electric incalzire W 2035(260~3140)

·Amperaj incalzire A 2(1.1~13.3)

·Racire sezoniera Pdesignc kW 0

·SEER W/W 1

·Clasa eficienta energetica A++

·Incalzire sezoniera Pdesignh kW 8

·SCOP W/W 0

·Clasa eficienta energetica A+

·Temperatura de balans ℃ -7

·Temperatura limita pentru incalzire ℃ -15

·Putere max. consumata W 3850

·Amperaj maxim A 5

·Compresor Model KTF235D22UMT

·Tip rotativ

·Brand GMCC

·Capacitate Btu/h 7650

·Putere consumata W 2065

·Amperaj in functionare A 4

·Refrigerant oil/oil charge ml ESTEL OIL RB74AF/ 670ml

·Motor ventilator UI Model WZDK58-38G

·Putere W 0

·Condensator electric uF ―

·Turatie(Hi/Mi/Lo) r/min 1150 / 1000 / 850

·Schimbator UI Numar spirale 2.0

·Pas tub(a)x pas linie(b) mm 21x13.37

·Spatiere mm 1.3

·Diametru tub mm Φ7, tub canelat

·Lungime spira x inaltime x latime mm 780x315x26.74

·Numar de circuite 4

·Debit aer UI (Hi/Mi/Lo) m3/h 980/817/662

·Presiune sonora UI (Hi/Mi/Lo/Si) dB(A) 5/42/34.5/28

·Putere sonora UI (Hi) dB(A) 59

·UI Dimensiuni(W*D*H) mm 1040x220x327

·Ambalaj (W*D*H) mm 1120x405x310

·Masa Net/Gross Kg 3/15.8

·Motor ventilator UE Model ZKFN-50-8-2

·Putere W 115

·Turatie r/min 850/700/550

·Schimbator UI Numar spirale 2.0

·Pas tub(a)x pas linie(b) mm 25.4x22

·Spatiere mm 1.4

·Diametru tub mm Φ9.52,Inner groove tube

·Lungime spira x inaltime x latime mm 730x660x44

·Numar de circuite 4

·Nivel presiune sonora UE dB(A) 5

·Putere sonora UE dB(A) 0

·UE Dimensiuni (W*D*H) mm 845x363x702

·Ambalaj (W*D*H) mm 965x395x765

·Masa Net/Gross Kg 5/54.5

·Refrigerent Tip R32

·GWP 675

·Masa incarcatura Kg 6

·Presiune de proiect MPa 3/1.7

·Tevi refrigerent Diam tevi refrigerent lichid/gaz mm/inch Φ9.52(3/8’‘)/Φ15.9(5/8’‘)

·Lungime maxima traseu teava m 50

·Diferenta max. de nivel m 25

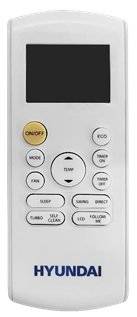

·Control temperatura Telecomanda

·Temperaturi de lucru Intern (racire/incalzire) ℃ 17～32/0～30

·Exterior (racire/incalzire) ℃ -15～50/-25～30

·Suprafata aplicatie minim maxim m2 32-47
