Specificatii Model HYU-18HRFN8-QRD0GW

·Alimentare electrica Ph-V-Hz 220-240V,1Ph,50Hz

·Putere Racire Capacitate Btu/h "18000 (6200~20900)"

·Consum electric racire W 1539(140~2360)

·Amperaj racire A 9(0.6~10.3)

·Putere Incalzire Capacitate Btu/h 19000(4700~23000)

·Consum electric incalzire W 1480(200~2410)

·Amperaj incalzire A 4(0.9~10.5)

·Racire sezoniera Pdesignc kW 2

·SEER W/W 1

·Clasa eficienta energetica A++

·Incalzire sezoniera Pdesignh kW 1

·SCOP W/W 0

·Clasa eficienta energetica A+

·Temperatura de balans ℃ -7

·Temperatura limita pentru incalzire ℃ -15

·Putere max. consumata W 2950

·Amperaj maxim A 5

·Compresor Model KSN140D21UFZ

·Tip rotativ

·Brand GMCC

·Capacitate Btu/h 4385

·Putere consumata W 1140

·Amperaj in functionare A 50

·Refrigerant oil/oil charge ml VG74/ 440ml

·Motor ventilator UI Model WZDK30-38G

·Putere W 36

·Condensator electric uF ―

·Turatie(Hi/Mi/Lo) r/min 1130 / 900 / 800

·Schimbator UI Numar spirale 2.0

·Pas tub(a)x pas linie(b) mm 21x13.37

·Spatiere mm 1.2

·Diametru tub mm Φ7, tub canelat

·Lungime spira x inaltime x latime mm 750x294x26.74

·Numar de circuite 3

·Debit aer UI (Hi/Mi/Lo) m3/h 840/680/540

·Presiune sonora UI (Hi/Mi/Lo/Si) dB(A) 44/37/30/25

·Putere sonora UI (Hi) dB(A) 55

·UI Dimensiuni(W*D*H) mm 957x213x302

·Ambalaj (W*D*H) mm 1035x295x380

·Masa Net/Gross Kg 10/13

·Motor ventilator UE Model ZKFN-40-8-1L-5

·Putere W 63

·Turatie r/min 800/650/550

·Schimbator UI Numar spirale 2.0

·Pas tub(a)x pas linie(b) mm 21x22

·Spatiere mm 1.2

·Diametru tub mm Φ7,Inner groove tube

·Lungime spira x inaltime x latime mm 860x504x44

·Numar de circuite 4

·Nivel presiune sonora UE dB(A) 0

·Putere sonora UE dB(A) 0

·UE Dimensiuni (W*D*H) mm 800x333x554

·Ambalaj (W*D*H) mm 920x390x615

·Masa Net/Gross Kg 34/36.7

·Refrigerent Tip R32

·GWP 675

·Masa incarcatura Kg 00

·Presiune de proiect MPa 3/1.7

·Tevi refrigerent Diam tevi refrigerent lichid/gaz mm/inch Φ6.35(1/4’‘)/Φ12.7(1/2’‘)

·Lungime maxima traseu teava m 30

·Diferenta max. de nivel m 20

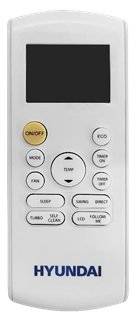

·Control temperatura Telecomanda

·Temperaturi de lucru Intern (racire/incalzire) ℃ 17～32/0～30

·Exterior (racire/incalzire) ℃ -15～50/-25～30

·Suprafata aplicatie minim maxim m2 24-35
